ARTISTE PICASSO

ARTISTE.

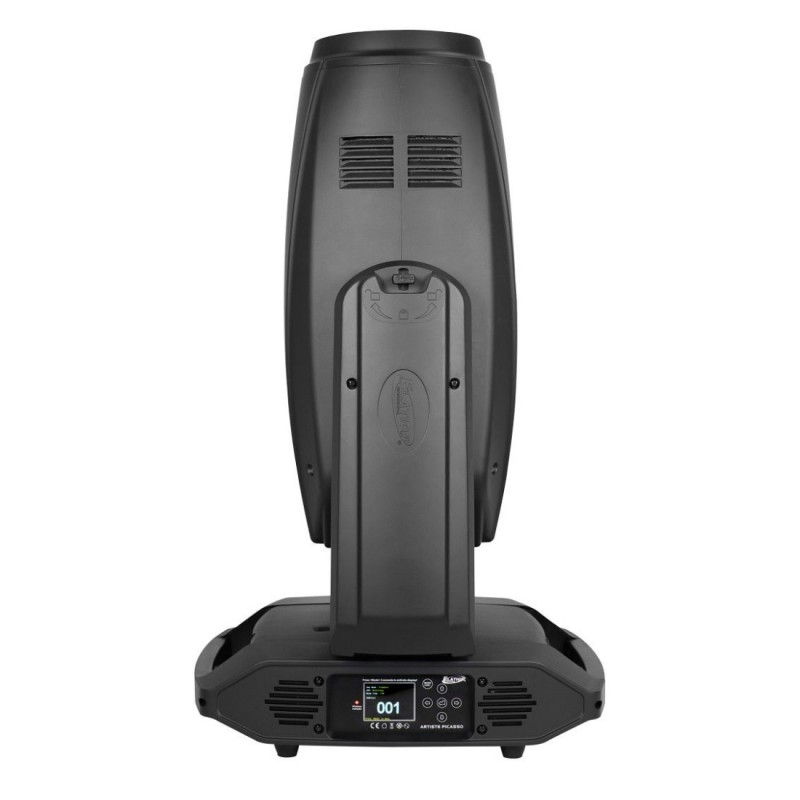

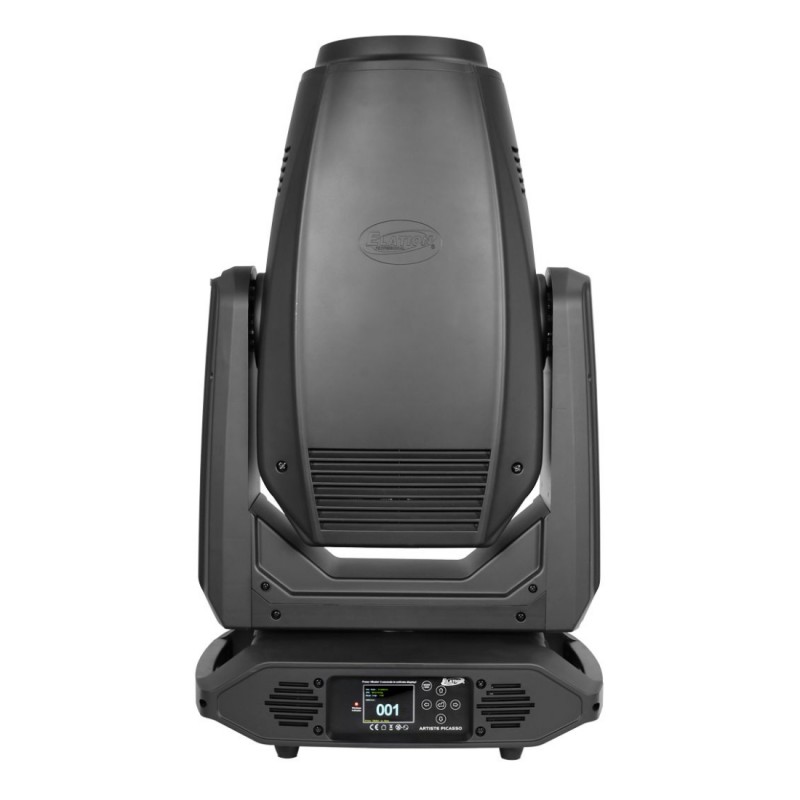

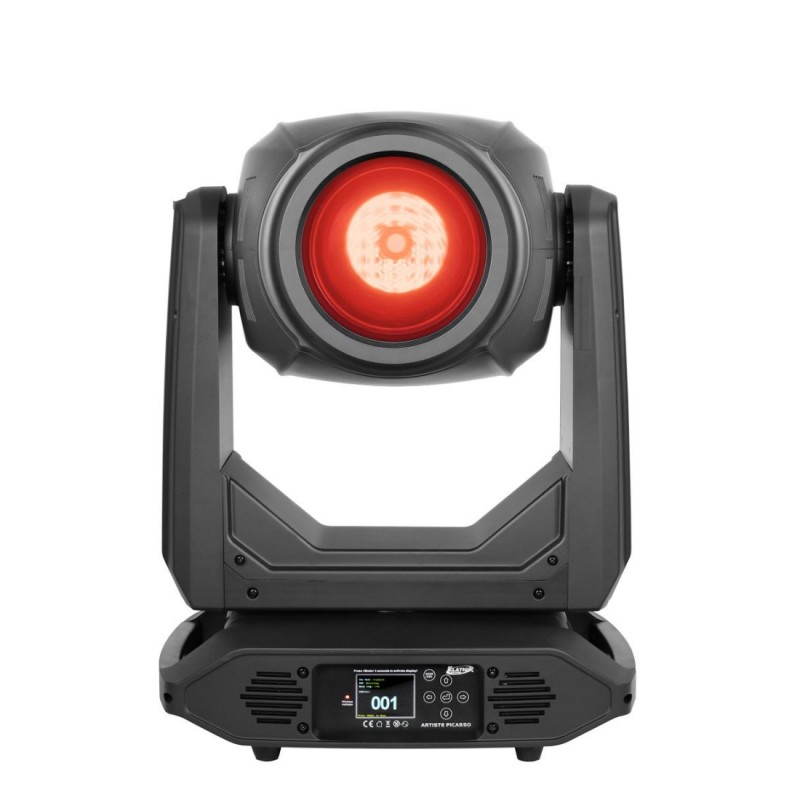

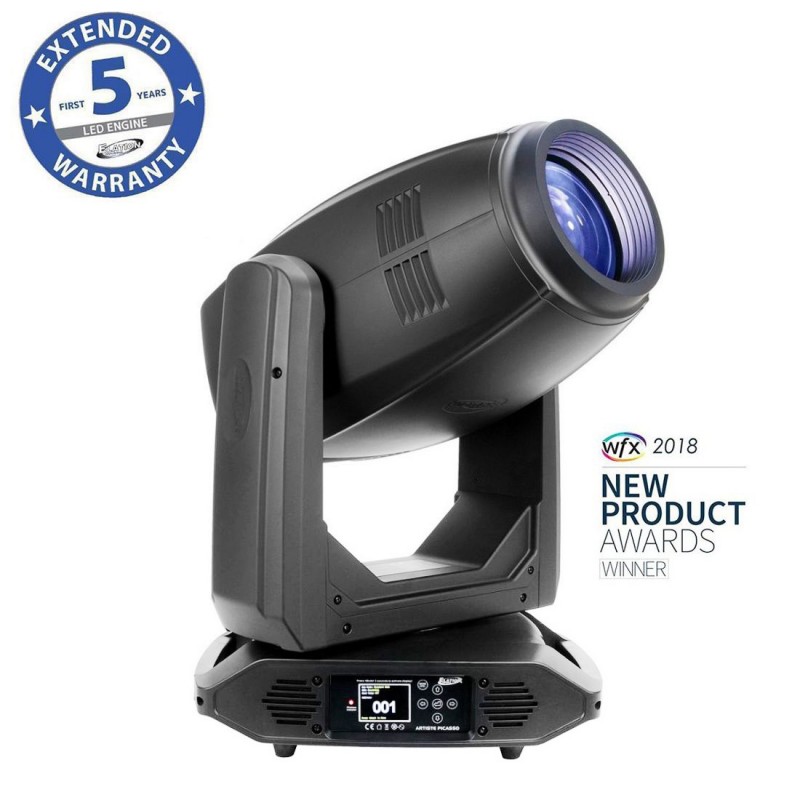

ELATION Foco led ARTISTE PICASSO.

El Artiste Picasso™ es una luminaria teatral de alta calidad y características completas que cuenta con una nueva fuente LED de 620 W 6.800 K Cool White (blanco frío) con ópticas avanzadas que proporcionan más de 23.000 lúmenes de salida total, un zoom ulta ancho y rápido de 7° a 55°, un sistema de mezcla de colores CMY que produce una amplia gama de tonos, desde pasteles a colores saturados, corrección de color CTO lineal, 6 colores dicroicos que incluyen un filtro de CRI Alto de 87, 7 gobos intercambiables de cristal rotatorios/indexables y 7 estáticos de metal estampado, 4 cuchillas de recorte giratorias Full Blackout con rotación individual de +/- 45°, rueda de animación bidireccional de 360°, dos prismas lineales rotatorios de 4 facetas y dos filtros difusores, macros internas de color, framing, prisma y frost, iris motorizado con efectos de pulso variable, enfoque motorizado con auto-focus, control de Pan/Tilt y dimmer de 16 bits, modos de curva de atenuación variables, shutter y strobo de alta velocidad, frecuencia de refresco LED y brillo ajustables para un funcionamiento sin parpadeo para cine y televisión, modo de ventilación silencioso para aplicaciones sensibles al ruido, soporte de protocolos DMX, RDM (Remote Device Management), Art-NET y sACN, transceptor DMX inalámbrico interno E-FLY de Elation, conexiones de alimentación, Ethernet RJ45 y DMX XLR de 5 pines con bloqueo, Panel de control LCD a todo color reversible 180° con batería de respaldo, y fuente de alimentación automática conmutable de múltiples voltajes (100-240 V).



CARACTERÍSTICAS
620W 6,800K Cool White LED Engine
23,000+ Total Lumen Output
7° to 55° Motorized Zoom
CMY Color Mixing System and Linear CTO Color Correction
6 Dichroic Colors including a High 87 CRI Filter
7 Rotating/Indexing Glass and 7 Static-Stamped Metal Interchangeable Gobos
4 Rotating Full Blackout Framing Blades
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms and 2 Frost Filters
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Motorized Focus and Auto-Focus Feature
16-bit Pan, Tilt, and Dimming Control
Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation For Broadcast TV and FILM
Silent Fan Mode
DMX, RDM, Art-NET, and sACN Protocol Support
Elation"s E-FLY™ Internal Wireless DMX Transceiver
Low Heat, Quiet Operation, Hibernation Mode (Power Save)

FUENTE
620W 6,800K Cool White LED Engine
30,000 Hour Average LED Life*
*Lamp Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

DATOS FOTOMÉTRICOS
23,000+ Total Lumen Output
CRI 73 (87+ with HCRI filter)
Zoom Range 7° - 55°
Beam Angle 6.7° - 47.9°
Field Angle 8.2° - 56°

EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Frost Filters
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma
Pan Angle: 540°/630°
Tilt Angle: 246°

COLOR
CMY Color Mixing System
Linear CTO Color Correction
6 Dichroic Colors including High 87 CRI Filter

GOBOS
2 Gobo Wheels
7 Rotating / Indexing Interchangeable Glass Gobos
7 Interchangeable Static-Stamped Metal Gobos

CONTROL / CONEXIONES
2 DMX Channel Modes (36 / 62 channels)
16-bit Pan, Tilt, and Dimming Control
Motorized Focus and 5-15m Auto-Focus Presets
DMX, RDM, Art-NET, and sACN Protocol Support
Elation"s E-FLY™ Internal Wireless DMX Transceiver
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Hibernation Mode (Power Save)
Locking 5pin XLR DMX, RJ45 Ethernet and Power
With Wired Digital Communication Network

DIMENSIONES / PESO
Length: 457mm (18.0 in)
Width: 544.5mm (21.5 in)
Vertical Height: 757.5mm (29.8 in)
Weight: 38.1kg (84.0 lbs.)

DATOS ELÉCTRICOS / TÉRMICOS
AC 100-240V - 50/60Hz
1,000W Max Power Consumption
-10°C to 45°C (14°F to 113°F)
BTU/hr (+/- 10%) 3410

ACTUALIZACIONES DE FIRMWARE
Current firmware can be found here (login required)
