Ref: 671910
Netron EP4 es una puerta de enlace (Gateway) Ethernet a DMX compacta con cuatro puertos compatibles con RDM. Se puede configurar a través de su control remoto web interno y se alimenta a través de Ethernet o mediante...
Advertencia: ¡Últimos artículos en inventario!
Disponible el:
Netron EP4 es una puerta de enlace (Gateway) Ethernet a DMX compacta con cuatro puertos compatibles con RDM. Se puede configurar a través de su control remoto web interno y se alimenta a través de Ethernet o mediante la conexión USB-C.
Click aquípara obtener más información sobre el EP4 y para todos los detalles técnicos y documentación.
CARACTERÍSTICAS
RDM, Artnet and sACN support
Factory and user presets for plug and play setups
POE or USB-C powered
99 Internal cues with fade and delay time
Remote configuration via internal webpage
Powder-coated compact aluminum housing
Connect to ONYX PC for a full four Universe Solution
ESPECIFICACIONES
MONTAJE
Standalone

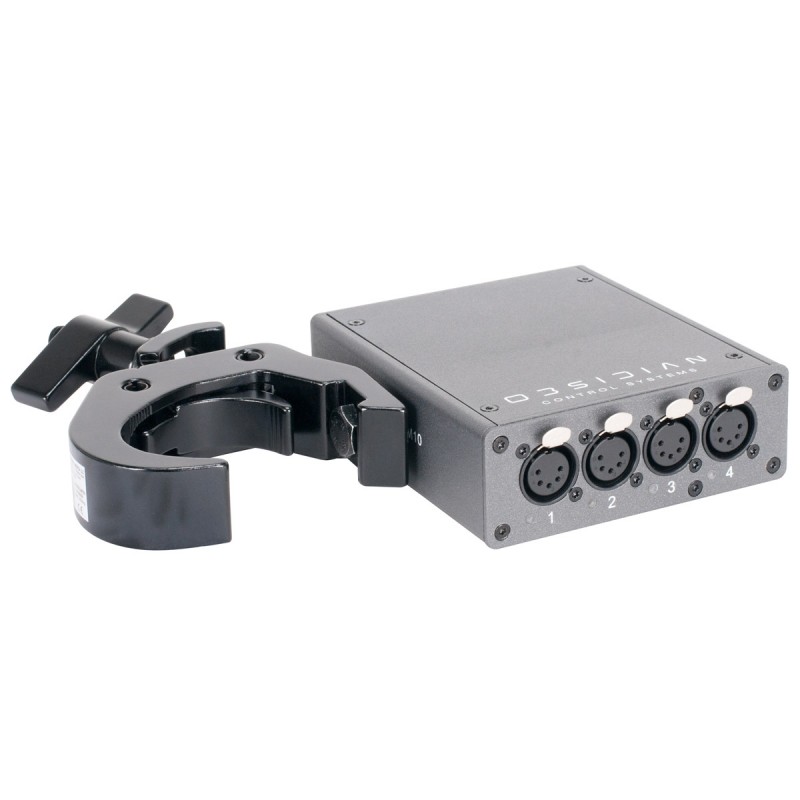

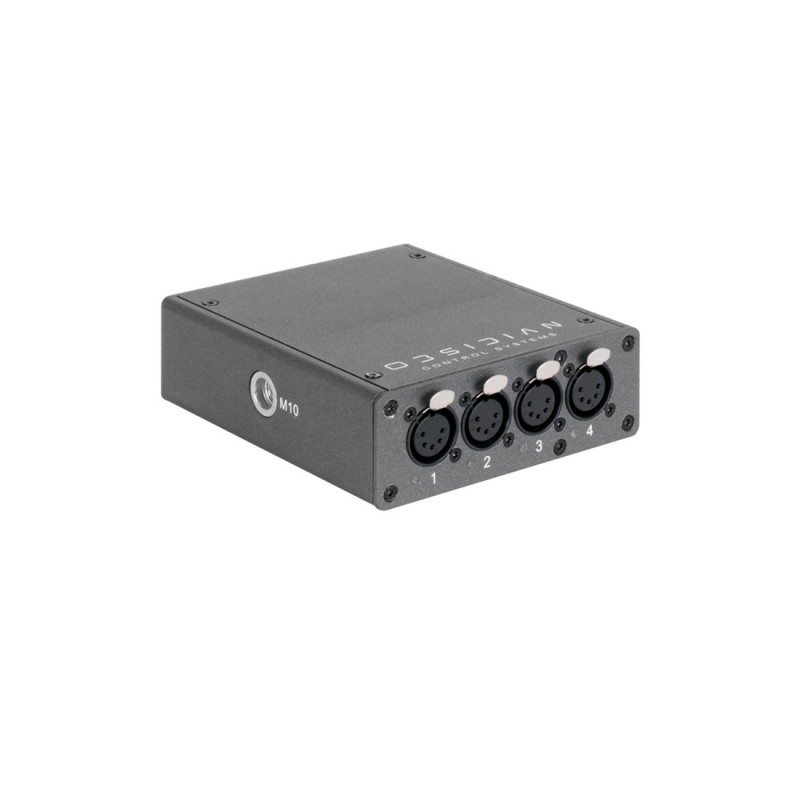

Truss-mount (M10 or M12 mounting hole)
Wall-mount horizontal or vertical (included)

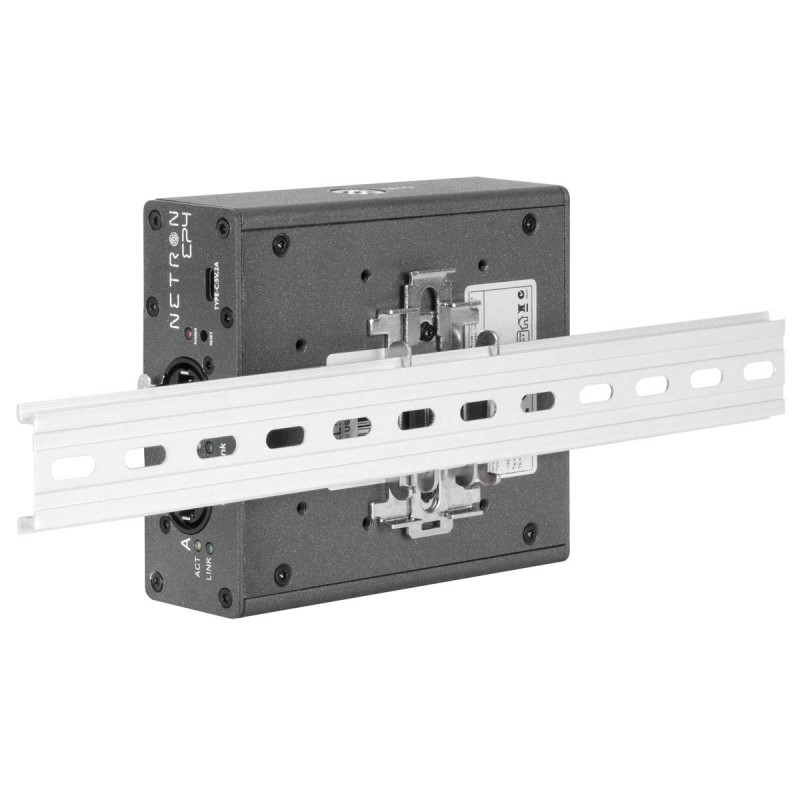

DIN Rail horizontal or vertical (included)
CONEXIONES
FRONT
(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
BACK
(2) Locking RJ45 Ethernet network connections (1x POE)
USB-C power option (5V, 2A)
DIMENSIONES / PESO
Length: 133.5 mm (5.3 in.)
Width: 118 mm (4.6 in.)
Height: 42 mm (1.65 in.)
Weight: 0.5 kg (1.1 lbs)
DATOS ELÉCTRICOS
USB-C 5V
POE 802.3af
ACTUALIZACIONES DE FIRMWARE
Current firmware can be found here (login required)
